TAW 2 without muntins Double-glazed solid acoustic walls without muntins

System description

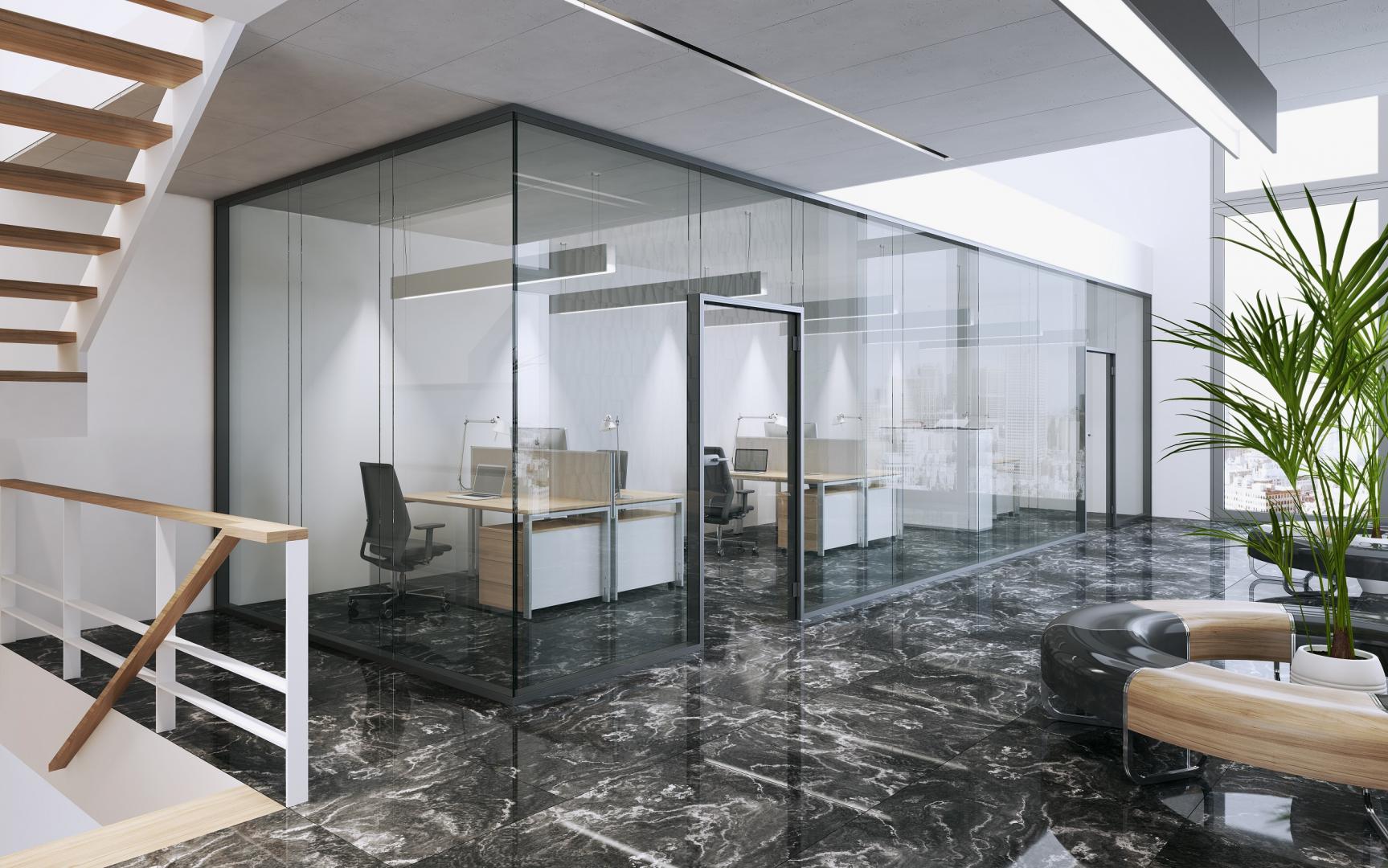

The TAW 2 system is a double-glazed sliding wall characterized by excellent and very good sound insulation. It is possible to install doors: full glass, in an aluminum frame and classic wooden doors, all with the option of a drop threshold. Powder-coated profiles in any color from the RAL palette and optional LED backlighting extend the range of configurations and applications. In the TAW 2 system, we distinguish two options: mullion and mullionless.

TAW 2 walls without mullions provide adequate rigidity and excellent light transmission. Thus, walls without mullions function as less visible in terms of arrangement. The double-glazed structure provides excellent sound insulation, which can be additionally increased by the use of drop-down thresholds in the door.

Our sliding walls are an ideal solution for dividing interiors in modern construction. They have excellent mechanical and acoustic parameters, which are the result of an optimal and reliable design, obtained as a result of many years of experience of our engineers. Thanks to the use of high-quality materials, the wall is distinguished by high rigidity, high acoustic insulation and above-average design.



Technical specification

Basic informations

double glass system, without muntin

Width of the profile



110 mm



Height of the profile



40 mm



Sound insulation*

Rw max 49dB (-1,-5)

Fire resistance

A1**

Fire proof class

Not applicable

Partition height

up to 3520 mm***

Glass insert

VSG: 55.1, 66.1, 88.2

Door

Single glass door

Usage category* (ETAG 003) IV
Room category* (PN-EN 1991-1-1-2004) A (residential), B (office), C (gatherings)
Material aluminium anoda
Colour options RAL palette

* - Supported by research carried out at the Building Research Institute
** - Aluminum sections are classified as non-combustible and meet the requirements of class A1 reaction to fire according to EN 13501-1 without testing, in accordance with the Decision of the European Commission 96/603/EC, with changes according to the Decisions of the European Commission 2000/605/EC and 2003/424/EC .
The glass is classified as non-flammable and meets the requirements of class A! reaction to fire according to EN 13501-1 without testing, according to the Decision of the European Commission 96/603/EC, with changes according to the Decisions of the European Commission 2000/605/EC and 2003/424/EC.


System Construction

profil dolny - przekrój

bottom profile - section

profil górny - przekrój

upper profile - section

profil dolny - mocowanie do podłoża

bottom profile - fixing

profil górny - mocowanie bezpośrednie do sufitu

upper profile - fixing dircetly to concrete

profil górny - mocowanie za pomocą toru

upper profile - fixing with track

łączenie ścian pod kątem 90 stopni - L

connecting walls in L shape

łączenie ścian pod kątem 90 stopni - L opcja bez narożnika

connecting walls in L shape without a corner

łączenie ścian pod kątem 90 stopni - T

connecting walls in T shape

łączenie ścian pod dowolnym kątem - Y

connecting walls at any degree



Door

drzwi pełnoszklane zamek klasyczny, zawiasy nawierzchniowe

Full glass door

drzwi pełnoszklane z progiem opadającym, zamek klasyczny, zawiasy nawierzchniowe

Full glass door, with treshold
